AEM 30-2056 12 Position Universal Trim Pot

AEM 30-2056 12 Position Universal Trim Pot
Item# 30-2056
Regular price: $36.46
Your price: $26.25

Product Description

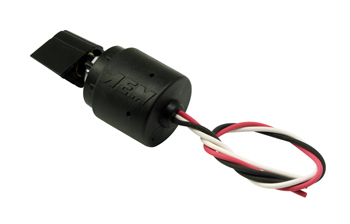

AEM 30-2056 12 Position Universal Trim Pot

The Universal 12 Position Trim Pot is for use on virutally any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc.

The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals.

All AEM 12 Position Trim Pots include a flying lead with a weatherproof overmold and 12 inch insulated wires that are color coded in black, white and red.


Specifications:


  • Total Resistance: 14.3KΩ
  • Cycles Minimum: 10,000
  • Positions: 12
  • Degree Rotation: 330
  • Mounting: 3/8" Hole
  • Jam Nut: 1/2" Hex
  • Knob Set Screw: 1/16" Allen
  • Supply Current: 5 Vdc
  • Output: .See table below
  • Elec. Termination: Overmold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
