AEM offers several sensor and Plug & Pin connector kits for vehicles that require additional outputs and/or upgraded hardware over existing sensors. Available sensors include boost/backpressure sensors, exhaust gas temperature (EGT) sensors, nitrous oxide/brake pressure sensors, UEGO replacement sensors, inlet air temp sensors (IAT), K-Type sensors and more. All sensors come with a three- wire mating connector with 12" leads for ease of installation.
- High-quality sealed sensor housings
- Mating connector and 12” leads included (sensors)
- Accurate and affordable

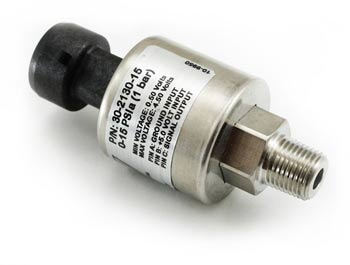

1 bar map or 15 PSIA sensor kit. 15 PSIa or 1 Bar Stainless Sensor Kit;Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 15 PSIa or 1 Bar Stainless Sensor, 12" Flying Lead Connector, 1/8" NPT to -4 Adapter & 1/8" NPT to 3/16" Barb Adapter.
All AEM Sensors include a flying lead with a weather-tight seal and 12 inch insulated wires that are color coded in black, green and red! This is important since the correct connector will give you the most accurate voltage possible.
Sensor Performance Specifications:
**** Free Ground shipping in the contiguous U.S.. Please contact us for a quote for shipping outside the contiguous U.S. or for express shipping ****
- Accuracy: <0.50% Full Scale
- Temp Drift: <0.50% Full Scale
- Stability: <0.25% Full Scale/Year
- Operating Temp: -40C to 105C
- Burst Pressure: 5 x Full Scale
- Response Time: < 1mS
- Wetted Materials: 304L & 316L Stainless Steel
- Vibration: 20G’s peak to peak sinusoidal
- Weight: <85g
- Supply Current: 5mA MAX. at 5 Vdc
- Elec. Termination: Integral weatherproof connector, includes mating connector with 12” leads, 1Red (Supply Voltage, 4.7-7.0 Vdc), Black (Ground), Green (Output)
