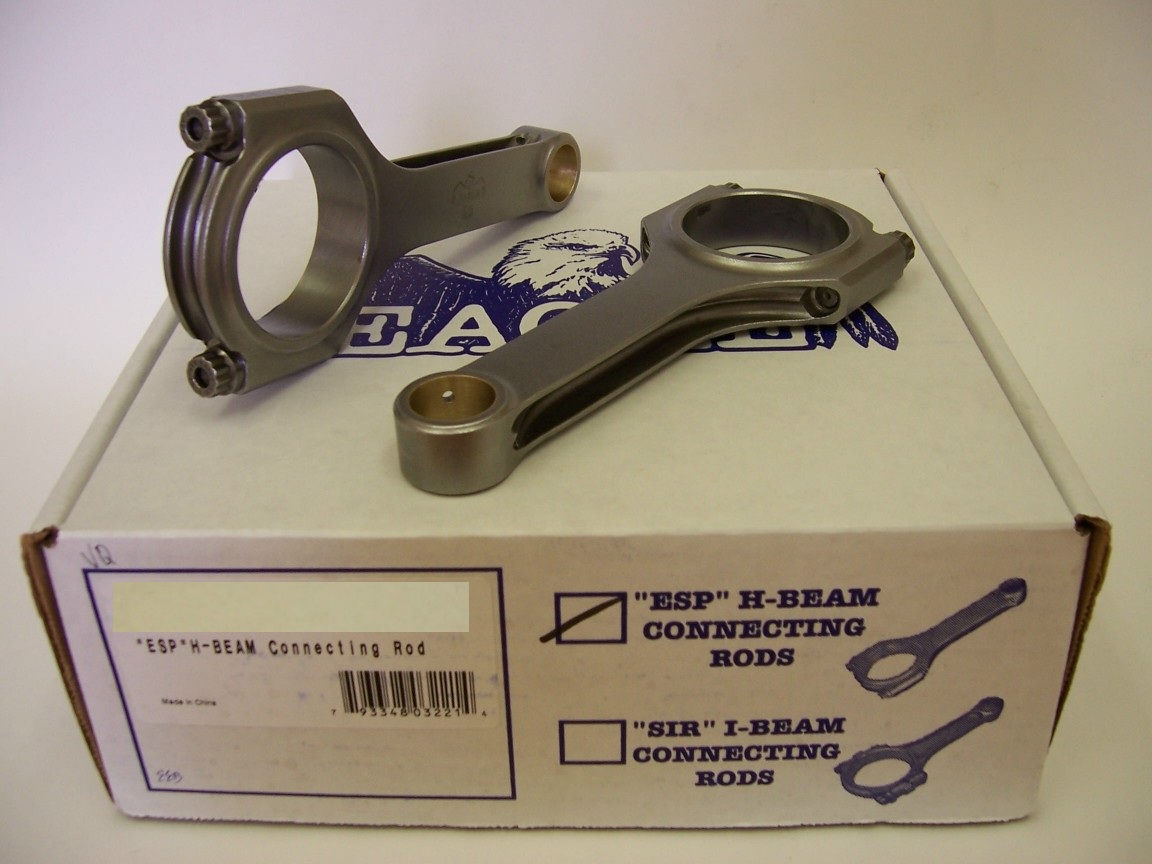

Eagle CRS5155F3D2000 ESP 4340 Forged H-Beam Connecting Rods Ford 289 Boss 302

Eagle CRS5155F3D2000 ESP 4340 Forged H-Beam Connecting Rods Ford 289 Boss 302

Eagle offers their ESP H-beam connecting rods in a lightweight series. Their lighter weight design provides less rotating mass for flawless high-rpm performance. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides superb strength at a fraction of the weight of most other rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have a stout cap screw attachment with precision cap alignment sleeves to positively locate each rod cap.

Specifications:

• Fasteners: 7/16" ARP 2000
• Torque: 75 ftlbs with ARP moly lube on threads
• Pin fit: Bushed
• Recommended up to 1200 HP

Dimensions:

• Length: 5.155 in.
• Rod journal: 2.123 in.
• Housing bore: 2.2394 in.
• Pin size: 0.912 in.
• Big end width: 0.9310 in.
• Pin end width: 1.0600 in.
• Thickness above pin: 0.190 in.
• Typical weight: 595g

Notes: standard length rod for 289, Boss 302.
