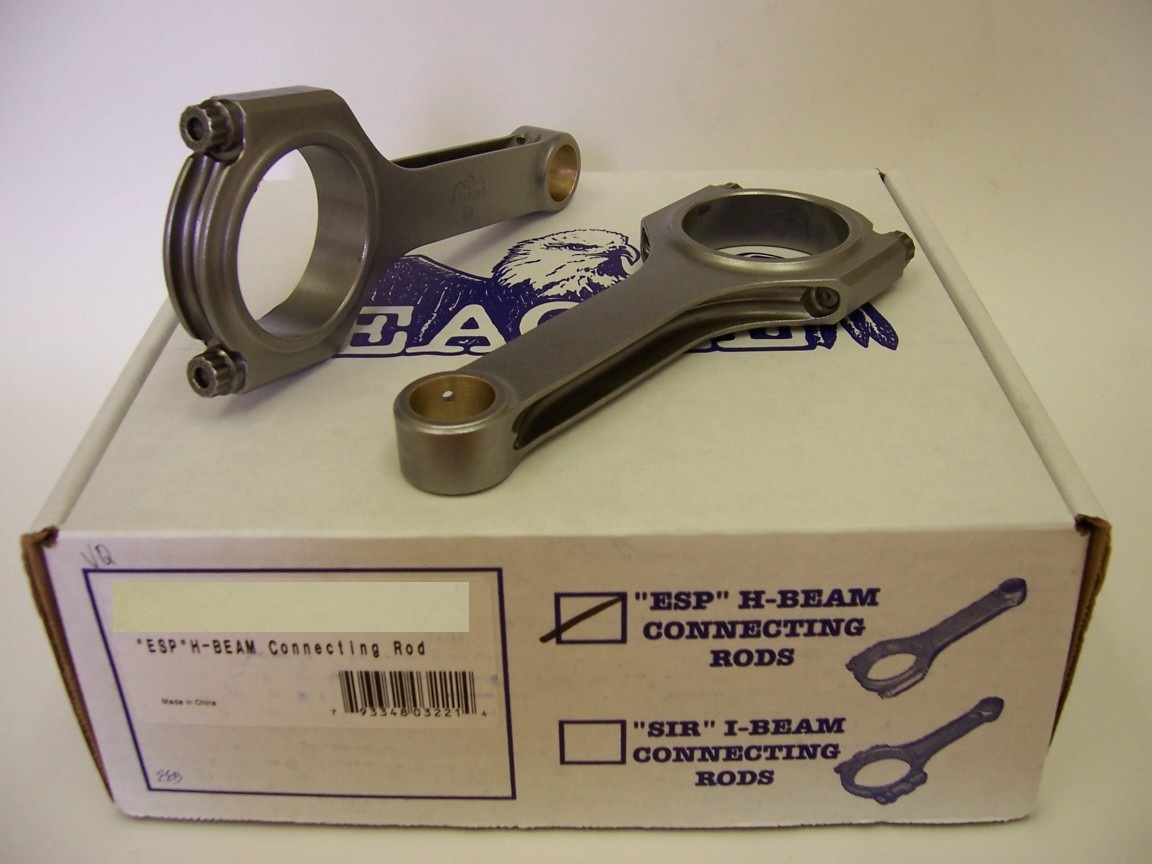

Eagle CRS5943C3D ESP 4340 Forged H-Beam Connecting Rods Cadillac Northstar

Eagle CRS5943C3D ESP 4340 Forged H-Beam Connecting Rods Cadillac Northstar
Item# CRS5943C3D
Regular price: $722.67
Your price: $542.00

Product Description

Eagle CRS5943C3D ESP 4340 Forged H-Beam Connecting Rods Cadillac Northstar

Eagle offers their ESP H-beam connecting rods in a lightweight series. Their lighter weight design provides less rotating mass for flawless high-rpm performance. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides superb strength at a fraction of the weight of most other rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have a stout cap screw attachment with precision cap alignment sleeves to positively locate each rod cap.


Specifications:


  • Fasteners: 3/8" ARP 2000
  • Torque: 43 ftlbs with ARP moly lube on threads
  • Pin fit: Bushed
  • Recommended up to 750 HP

Dimensions:


  • Length: 5.943 in.
  • Rod journal: 2.124 in.
  • Housing bore: 2.2500 in.
  • Pin size: 0.866 in.
  • Big end width: 0.8580 in.
  • Pin end width: 0.8580 in.
  • Thickness above pin: 0.200 in.
  • Typical weight: 545g

Notes: 1999 & older Northstar
