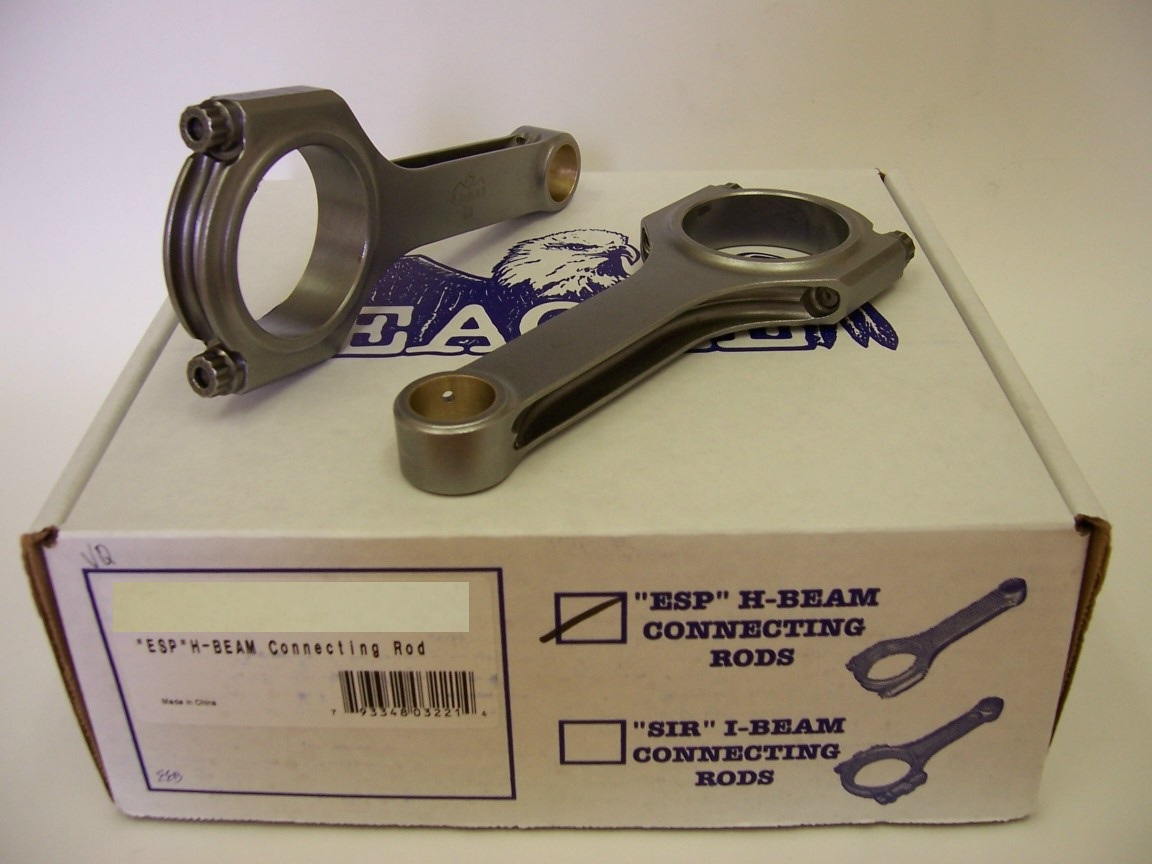

Eagle CRS5967A3D ESP 4340 Forged H-Beam Connecting Rods Honda B-Series

Eagle CRS5967A3D ESP 4340 Forged H-Beam Connecting Rods Honda B-Series
Item# CRS5967A3D
Regular price: $453.33
Your price: $340.00

Product Description

Eagle CRS5967A3D ESP 4340 Forged H-Beam Connecting Rods Honda B-Series

Eagle offers their ESP H-beam connecting rods in a lightweight series. Their lighter weight design provides less rotating mass for flawless high-rpm performance. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides superb strength at a fraction of the weight of most other rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have a stout cap screw attachment with precision cap alignment sleeves to positively locate each rod cap.


Specifications:


  • Fasteners: 3/8" ARP 2000
  • Torque: 43 ftlbs with ARP moly lube on threads
  • Pin fit: Bushed
  • Recommended up to 900 HP

Dimensions:


  • Length: 5.967 in.
  • Rod journal: 1.771 in.
  • Housing bore: 1.8900 in.
  • Pin size: 0.826 in.
  • Big end width: 0.9350 in.
  • Pin end width: 0.9350 in.
  • Thickness above pin: 0.200 in.
  • Typical weight: 555g

Notes: B-series special length
