DriveShaft RA5200X5/RA5200X5 1400HP Axles W/ Larger 30- Spline Bars 04-06 Pontiac GTO

DriveShaft RA5200X5/RA5200X5 1400HP Axles W/ Larger 30- Spline Bars 04-06 Pontiac GTO
Item# RA5200X5/RA5200X5
Regular price: $999.98
Your price: $899.98

Product Description

DriveShaft RA5200X5/RA5200X5 1400HP Axles W/ Larger 30- Spline Bars 04-06 Pontiac GTO

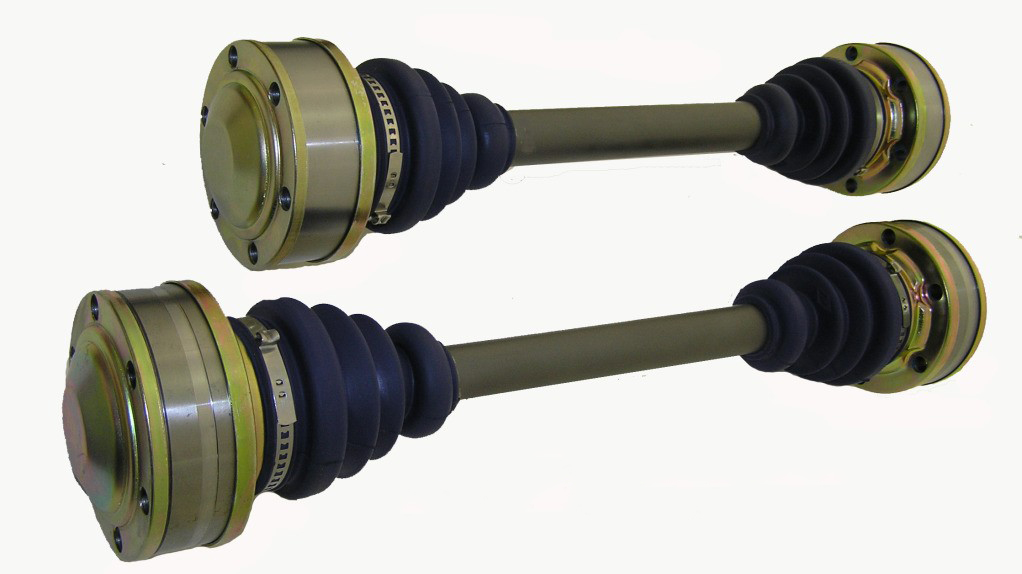

This is our upgraded 1400HP rear axle set for the GTO platform. This set of axles has the thicker Porsche style 108mm CV and hardware that is 30% stronger than the factory design. These axles feature our new 1-3/8" OD 300m 30 spline bars which are significantly larger than any other axle on the market today. Lets say that again, this is a 30 spline axle (not just 28 like other manufacturers). These axles also have a greater advantage of certified 4340AQ cages (not just chromoly). It also has a certified 300m center race that is without a doubt one the of strongest CV races in the industry. This is a direct fit axle and will handle most powerful street and track cars. These axles will bolt directly to the factory differential stubs and include new hardware for installation. Rated to 1400HP.


DSS Axles:


  • Full certified 300m center bars (not just 28 spline like the others). There is a reason the Viper T56 uses a 30 spline and its the reason we do too.
  • Certified 4340AQ cages with re-designed radius on the CV cage windows.
  • Our center race in the CV is certified 300m, this should need no explanation, no one else uses this strong a inner race, its why we have so many 8 second cars running our axles.
  • Rolled splines on our axle bars. Most know that a forging is always stronger than billet. Here at The Driveshaft Shop we roll our splines, this is by far the strongest way to form a spline and is far superior to cut splines (old technology).

These are just some of the technical reasons why our axles are the best on the market today. In addition to being used by all of the fastest cars in the world and our goal to bring you the best customer service in the industry, only from The Driveshaft Shop.
