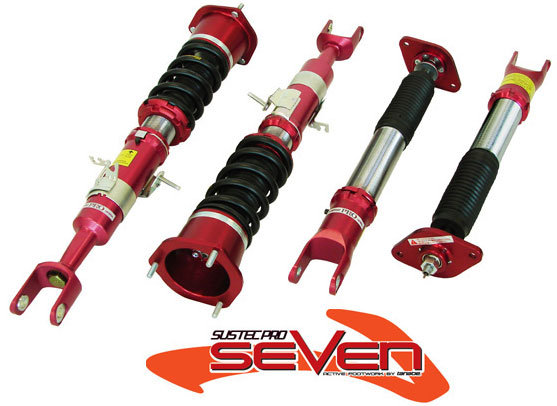

TANABE TSE7063 Coilover Kits Nissan 350Z (Z33)

TANABE TSE7063 Coilover Kits Nissan 350Z (Z33)
Item# TSE7063-350z
Regular price: $2,580.00
Your price: $2,450.00

Product Description

Sustec Pro SEVEN is an all new adjustable coilover that features a wide array of all new circuit-developed technology that has not been available until now. While similar in appearance, the SEVEN is completely different from any suspension currently available.

The new slide valve technology allows a great range of adjustability and function from comfort to pure competitive motorsports use. When used with the new TEAS electronic active suspension controller, the wide range of dampening force is accessible through the touch of a button and is fully programmable to automatically adjust dampening rates according to the speed you drive. In addition to TEAS, SEVEN is also available as a special "Hard Driving" version, for strictly motorsports use.


SEVEN MEANS THE GREATEST DAMPENING RANGE


The Slide Valve of the SUSTEC PRO SEVEN allows a massive range of Actual Dampening Force, meaning each dampener setting greatly changes the personality and handling of the vehicle. This allows SEVEN to serve complete comfort as well as pure racing agility in a single package.

Competitor dampers have a much smaller dampening adjustment range due to limitations of their internal valving design, resulting in setting changes that are virtually unnoticeable. Each of SUSTEC PRO SEVEN’S damper settings have impact and purpose, allowing the pilot to conquer all types of driving. SEVEN lets the automotive enthusiast enjoy every form of automotive sports. This shock dynograph tested the actual dampening force of the Sustec Pro SEVEN versus "F Type 16-setting dampener" of a competitor; both applications were for the DC5 chassis. Although both dampers feature the same amount of dampener settings (16 steps), the actual speeds and force of compression and rebound greatly vary.

Sustec Pro SEVEN has the true dampening function that proves that the number of dampener settings (8,16,32,64, etc) does not always equal actual performance.


Features:


  • Years: 03-06
  • Spring Rates.: Front (10.0 kg/mm), Rear (10.0 kg/mm)
  • Special Order Only

Accessories

TANABE TSD001 Tanabe Electric Active Suspension Universal

TEAS stands for "Tanabe Electric Active Suspension" and is the counterpart of the Sustec Pro FIVE & Sustec Pro SEVEN suspensions. This compact unit is the 'brain' behind the highly sophisticated new Tanabe suspensions. TEAS is a fully programmable dampener controller that allows for dampening force to be automatically adjusted while driving. TEAS accomplishes this by connecting and using the signal from the vehicle's Speed Sensor.

TEAS active dampening control is uniquely possible due to the use of the specialized valving of the FIVE & SEVEN, in conjunction with TEAS' slim, high speed actuators. These actuators change dampener settings in 1/100ths of a second, which is necessary as TEAS can continuously change settings at different speeds.


TEAS CONCEPT


FOR ANY ROAD, BE IT A CIRCUIT, CITY STREET, OR WINDING ROAD, THERE IS USUALLY NEVER ONE SINGLE PERFECT SUSPENSION SETTING THROUGHOUT THE COURSE. The perfect damper setting for high-speed cornering may be unfavorable for low- speed hairpins. TEAS allows the driver to program our coilovers to deliver best of both worlds -- perfect high- speed stability and maximum hairpin agility -- automatically.


ACTIVE & MANUAL PROGRAMMING MODES


ACTIVE MODE:

Takes readings from the vehicle speed sensor to automatically make dampening changes. When programming TEAS, you may program up to 9 "triggers" that activate when you reach a variety of speeds. Increments of as little as 5mph can trigger a damper setting change.

Once Active Mode is programmed and turned on, TEAS will automatically adjust settings as you drive.

MANUAL MODE:

Allows front and rear damper settings to be individually adjusted by manual input or recalled from any of four saved settings. Additionally, Manual Mode settings can be used as base maps for Active Mode.

Regular price: $598.00
Your price: $565.00
TSD001
