AEM 30-2012 1/8" PTF Water / Coolant / Oil Temperature Sensor Kit

AEM 30-2012 1/8" PTF Water / Coolant / Oil Temperature Sensor Kit
Item# 30-2012
Regular price: $56.13
Your price: $40.41

Product Description

AEM 30-2012 1/8" PTF Water / Coolant / Oil Temperature Sensor Kit

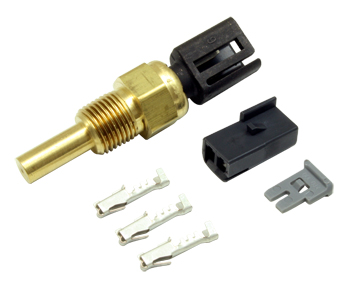

Water / Coolant / Oil Temp Sensor Kit. 1/8"-27 PTF. Includes: Water / Coolant / Oil Temp Sensor, plug, pins & pin lock.


Specifications:


  • Accuracy: < 2°C / 3.6°F
  • Operating Temp: -40C to 200C / -40F to 392F
  • Resistive Range (Ω): See Table
  • Dissipation Constant: 12 mW/°C. The ratio, at a specified ambient temperature, of the change in the power dissipation of the sensor to the resultant temperature change of the thermistor. Test
  • medium: silicone oil.
  • Thermal Time Constant: 10 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test
  • Medium: silicone oil.
  • Sensor Body Material: Brass
  • Thread: 1/8"-27 PTF
  • Hex Size: 1/2"
  • Installation Torque: 13.5Nm / 10 ft-lbs
  • Weight: 12.2g
  • Supply Current: 5Vdc
  • Elec. Termination: Connector. Includes mating Connector, Pins & Pin Lock
