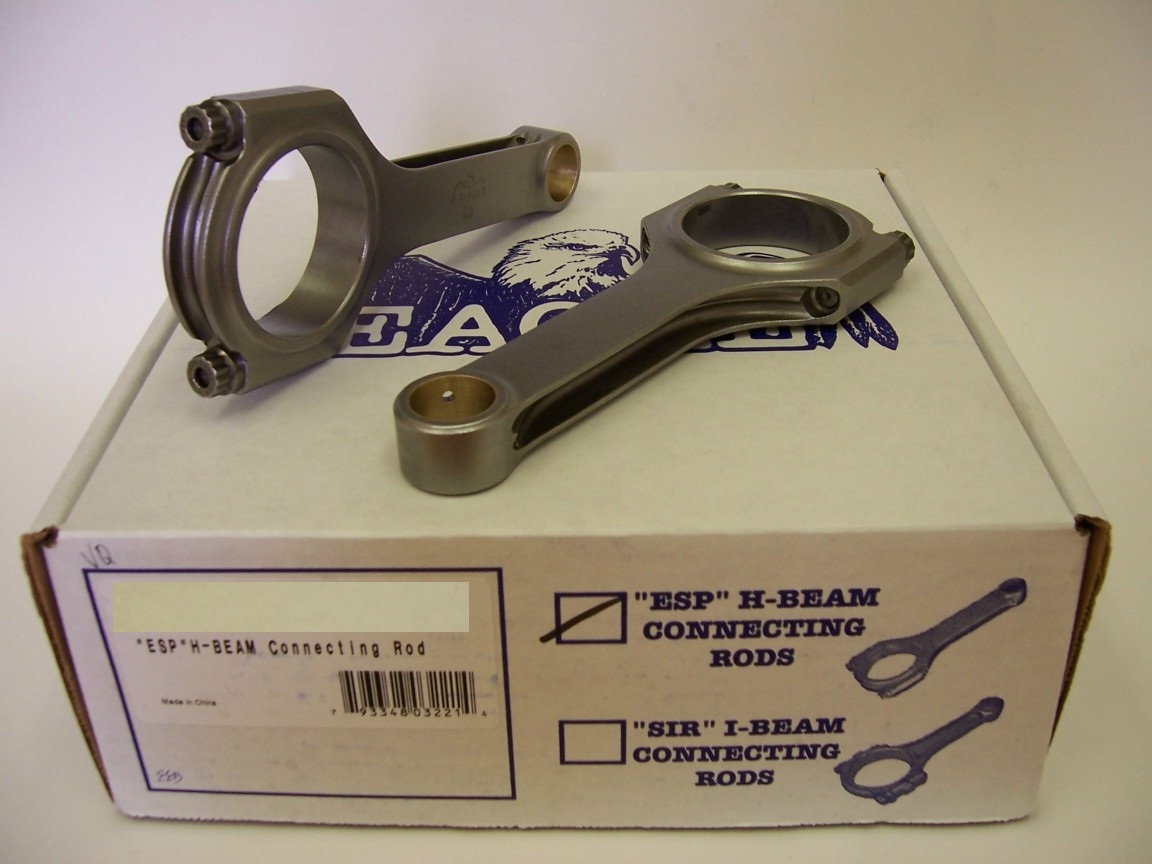

Eagle CRS5984K3D ESP 4340 Forged H-Beam Connecting Rods Honda K24
Eagle offers their ESP H-beam connecting rods in a lightweight series. Their lighter weight design provides less rotating mass for flawless high-rpm performance. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides superb strength at a fraction of the weight of most other rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have a stout cap screw attachment with precision cap alignment sleeves to positively locate each rod cap.
- Fasteners: 3/8" ARP 2000
- Torque: 43 ftlbs with ARP moly lube on threads
- Pin fit: Bushed
- Recommended up to 900 HP
- Length: 5.984 in.
- Rod journal: 1.889 in.
- Housing bore: 2.0080 in.
- Pin size: 0.865 in.
- Big end width: 0.7790 in.
- Pin end width: 0.7790 in.
- Thickness above pin: 0.220 in.
- Typical weight: 555g
Notes: K24. If used with aftermarket pistons having .866" pin - small end must be honed to size.
