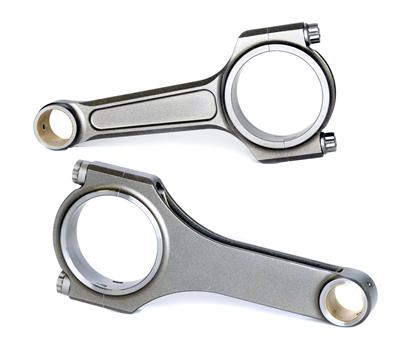

Carrillo DA-KA24>-66496H-00 Pro H-Beam Connecting Rod Nissan 240SX KA24 S14
Lead the way with strong Pro-H connecting rods from Carrillo. Able to handle the most abusive forces of your race engine, their straight H-beams are the stoutest configurations available. Obsessed with perfection, Carrillo produces their Pro-H connecting rods in small batches. They mesh quality materials, precision forging, excellent craftsmanship, and high-tech designs to deliver a flawless performance for your race engine. Applications are available for many venues of motorsports. Drive your racer to the winner's circle with the high performance "choice connection"--Carrillo Pro-H straight H-beam connecting rods.
- Connecting Rod Length: 6.496 in.
- Connecting Rod Beam Style: H-beam
- Connecting Rod Material: Forged steel
- Connecting Rod Finish: Shot-peened
- Wrist Pin Style: Floating
- Clearanced for Stroker: No
- Cap Retention Style: Cap screw
- Connecting Rod Bolt Brand: WMC
- Connecting Rod Bolt Diameter: 3/8 in.
- Connecting Rod Bolt Material: H-11 tool steel
- Connecting Rod Bolt Head Style: 12-point
- Approximate Connecting Rod Weight (g): 607
- Big End Bore Diameter (in): 2.0870 in.
- Pin End Bore Diameter: 21.000mm
- Big End Width (in): 0.817 in.
- Pin End Width (in): 0.975 in.
- Weight Matched Set: No
- Remanufactured: No
- Balanced: No
- Magnafluxed: No
- Quantity: Sold individually
- Application Notes: KA24
