Perrin PSP-ENG-400-2BK 02-07 Subaru Black Tubes/Couplers
Boost Tubes - PERRIN boost tubes are CNC mandrel bent from aluminum tubing for better weight reduction. Every boost tube has an over sized beaded end to ensure the hose clamps and couplers stay connected and sealed! We choose to take the smoothest shortest path to get air to and from the intercooler.
Right off the turbo a smooth offset coupler carries the hot side air charge to a perfectly matched 2.25” boost tube. We chose 2.25" tubing for a smoother, cleaner, obstruction free routing while still being large enough to flow more WHP than most turbos can put out. The air charge then is routed through the engine bay next to the battery, and down behind the radiator to the intercooler. The cold side boost tubes are mounted as high as possible in the engine compartment to clear all turbo and intake combinations as it travels to the throttle body through the engine bay.
T-Bolt Clamps - PERRIN Performance T-bolt clamps are standard on PERRIN intercoolers. They are designed for uniform clamping at all points around the band. The wider band distributes the force over a larger area and the fine threaded bolts with nylon lock nuts allow for accurate torque and proper clamping. Never worry about having to re-tighten down the road, plus each PERRIN logo-ed clamp is made in the USA and has the torque spec engraved on each one. Advantage PERRIN!
Coolant Reservoir - The PERRIN front mount intercooler kit includes a PERRIN Performance coolant overflow tank. It adds clearance for better boost tube routing, holds more coolant than previous designs and uses the OEM tank cap for a great seal! The PERRIN Performance coolant overflow tank is protected from the elements by a black texture powder coating. It looks great and makes the silk screened logo pop.
5 Year Warranty - PERRIN Performance warrants to the original purchaser, all PERRIN products to be free from defects in material and workmanship within a sixty (60) months period from the date of purchase.
- Boost Tube Construction: Mandrel Bent Aluminum
- Boost Tube Finish: Wrinkle Powdercoat
- Clamps: T-Bolt Clamps
- Coolant Resevoir: Aluminum Catch Can
- Horse Power: Supports 1000+hp

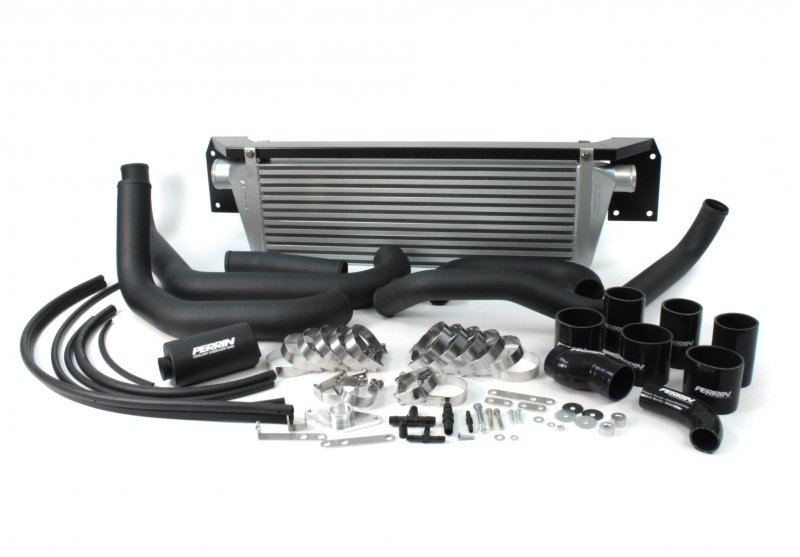

- (1) Set of 2002-2007 WRX & STI PERRIN Boost Tubes
- (1) PERRIN Coolant overflow tank
- (1) PERRIN T-Bolt Kit
- (1) Set of PERRIN Silicone couplers
- All necessary mounting hardware included
- (2) PERRIN License Plate Frames
- 02-07 Subaru WRX
- 04-07 Subaru STI
- Works with PSP-ENG-400-2 Front Mount Intercooler
