AEM 30-2130-1000 1000 PSIg Stainless Steel Sensor Kit Universal

AEM 30-2130-1000 1000 PSIg Stainless Steel Sensor Kit Universal

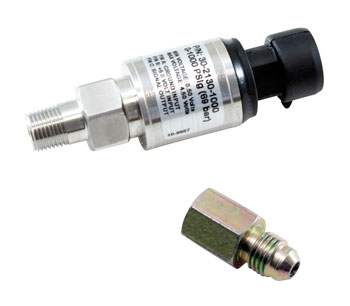

1000 PSIg Stainless Steel Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 1000 PSIg Stainless Steel Sensor, Connector, Pins & 1/8" NPT to -4 Adapter.

Sensor Performance Specifications:

• Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
• Operating Temp: -40C to 105C / -40F to 221F
• Burst Pressure: 10,000PSI
• Response Time: < 1mS
• Wetted Materials: 304L & 316L Stainless Steel
• Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
• Weight: <85g
• Supply Current: <6mA at 5 Vdc
• Output: .5 to 4.5Vdc Linear
• Transfer Function: PSI = (250*(Voltage))-125
• Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output)
