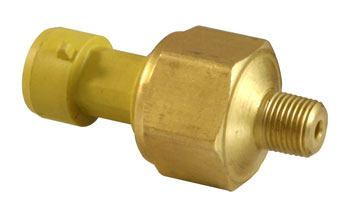

AEM 30-2131-15G 1 Bar / 15 PSIg Brass Sensor Kit

AEM 30-2131-15G 1 Bar / 15 PSIg Brass Sensor Kit

1 BAR / 15 PSIg Brass Sensor Kit. Brass Sensor Body. 1/8" NPT Male Thread. Includes: 1 BAR / 15 PSIg Brass Sensor, Connector & Pins.

Specifications:

• Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
• Operating Temp: -20C to 105C / -4F to 221F
• Burst Pressure: 30PSI
• Response Time: < 1mS
• Wetted Materials: 304L & 316L Stainless Steel
• Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
• Weight: <85g
• Supply Current: <6mA at 5 Vdc
• Output: .5 to 4.5Vdc Linear
• Transfer Function: PSI = (3.7529*(Voltage))-1.8765
• Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output)
