AEM 30-2131-75 5 BAR MAP Sensor 75 PSIA Brass Sensor Kit Universal

AEM 30-2131-75 5 BAR MAP Sensor 75 PSIA Brass Sensor Kit Universal
Item# 30-2131-75
Regular price: $88.66
Your price: $65.61

Product Description

AEM offers several sensor and Plug & Pin connector kits for vehicles that require additional outputs and/or upgraded hardware over existing sensors. Available sensors include boost/backpressure sensors, exhaust gas temperature (EGT) sensors, nitrous oxide/brake pressure sensors, UEGO replacement sensors, inlet air temp sensors (IAT), K-Type sensors and more. All sensors come with a three- wire mating connector with 12" leads for ease of installation.


  • High-quality sealed sensor housings
  • Mating connector and 12” leads included (sensors)
  • Accurate and affordable

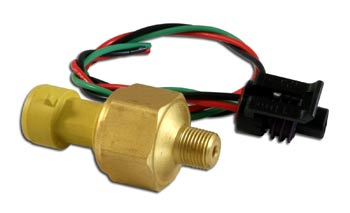

5 BAR MAP Sensor 75 PSIA Sensor Kit. Brass body with 1/8-NPT male thread. Includes -4 adaptor, barb adaptor, connector plug with flying lead & sensor.

Sensor Performance Specifications:

  • Accuracy: +/- 3% Full Scale
  • Temp Drift: +/- 3% Full Scale
  • Zero Stability: <3% Full Scale/Year
  • Operating Temp: -4F to 221F / -20C to 105C
  • Burst Pressure: 2 x Full Scale
  • Response Time: < 1mS
  • Wetted Materials: 304L & 316L Stainless Steel
  • Vibration: 20G’s peak to peak sinusoidal
  • Weight: <85g
  • Supply Current: 5mA MAX. at 5 Vdc
  • Elec. Termination: Integral weatherproof connector, includes mating connector with 12” leads, 1Red (Supply Voltage, 4.7-7.0 Vdc), Black (Ground), Green (Output)
