Product Description

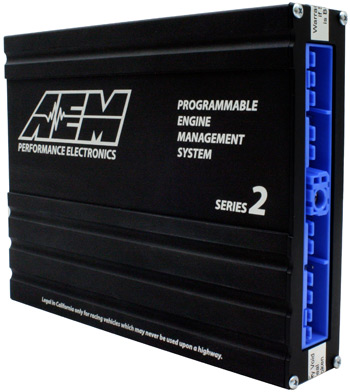

AEM 30-6620 Series 2 Plug & Play Engine Management System 89-98 Nissan Skyline RB26DETT 2.6L Turbo
AEM's Series 2 EMS is a complete engine control system that plugs into the factory harness and uses the factory sensors. This means you do not need to replace any parts of the harness or sensors, just plug the EMS into the harness and begin tuning! The Series 2 EMS allows you to control every aspect of your RB25. From NVCS to rev limit, timing, adding different sized injectors, boost control, nitrous injection, even anti-lag and individual cylinder fuel and timing trims, the Series 2 EMS gives you total control from an easy to use interface.
Outputs:
- Injector Outputs: 6 Peak & Hold, 6 Saturated
- Coil Outputs: 6
- Selectable direct drive or 0-5V Coil Output: Yes
- Direct plug in, no jumper harness required: Yes
- General purpose LS outputs: 12
- General purpose HS outputs: 4
- Individual cylinder ignition trims: Yes
- Individual cylinder fuel trims: Yes
Inputs:
- Trigger inputs (Ref/Sync): 4
- Analog voltage inputs: 18
- Configurable Analog/RTD/Thermister inputs: 4
- Switch inputs: 5
- Lambda inputs: 2x
- Knock sensors: 2
- User adjustable knock sensor center frequency: Yes
Communication:
- USB comms: Yes
- RS232 comms: Yes
- Communication cables included: Yes
- Fully enabled editing/logging software included: Yes
- CAN bus equipped: Yes
- RS232 datastream output: 19 ch
- CAN datastream output: 19 ch
- Communicates with AIM Dash/Dataloggers: Yes
- Communicates with Racepak Dash/Dataloggers: Yes
DATA Acquisition
- Internal data logging: 1 MB
- Maximum internal logging rate (per channel): 250 Hz
- PC logging: Yes
- Data analysis using AEMLog: Yes
Functions and Features:
- All channels/maps/tuning options unlocked: Yes
- Boost control: Yes
- Groundspeed based boost target: Yes
- Staged injection: Yes
- Ground speed limiting: Yes
- Rate of Acceleration Control: Yes
- Overrun boost enhancement (anti-lag): Yes
- Gear change ignition cut (shift-without-lift): Yes
- Password protected calibrations: Yes
- Fuel & Ignition rev limiters: Yes
- "In cockpit" global fuel trim capability: Yes
- Gear dependent shift light: Yes
- Evap/Purge function: Yes
- DC Motor control: 2 Ch
- Software definable "virtual" switch inputs: 2
- EGT Based fuel trims: Yes
- Maximum boost limit: None
- Transmission: Manual only
Physical Dimensions:
- Length: 192 mm
- With: 150 mm
- Height: 37 mm
- Finish: Black Anodized
AEM Series 2 Plug-N-Play Engine Management Systems
Legal in California only for racing vehicles which may never be used upon a highway.
