Cobb Tuning 771750 3-Port Boost Control Solenoid 04-13 Mazda

Cobb Tuning 771750 3-Port Boost Control Solenoid 04-13 Mazda
Item# 771750
Regular price: $115.00
Your price: $115.00

Product Description

Cobb Tuning 771750 3-Port Boost Control Solenoid 04-13 Mazda

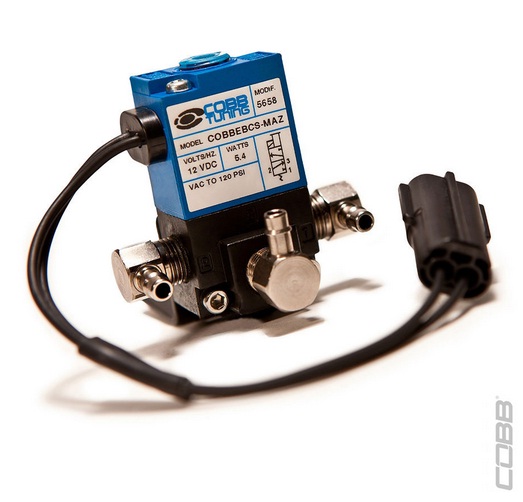

The COBB 3-Port Boost Control Solenoid (BCS) adds the flexibility and precision needed for properly controlling boost via the factory ECU. Many upgrades to the turbocharging system (such as larger turbochargers and external wastegates) require the increased performance, reliability, flexibility, safety and installation options that the COBB 3-Port BCS provides.

The COBB 3-Port Boost Solenoid is an excellent upgrade for modern turbocharged vehicles, enabling precise boost control in a tidy package that is easy to install and tune. Our BCS will eliminate boost fluctuations and boost creep inherent in OEM boost control systems, providing the necessary stable and repeatable boost control required for accurate tuning and consistent performance. The COBB BCS is equally capable of providing stable boost control at stock boost levels as well as extremely high boost levels associated with big-power builds, with an operating range of up to 120psi.

he COBB Tuning 3-Port BCS features 1/8" low-profile barb fittings to keep the unit compact, and are nickel coated for corrosion resistance. Optional 1/4" nickel plated fittings are also available separately. Viton spools and seals are used throughout for long life and lubricated with Dow Corning silicone grease. The manual override port is sealed with an O-ring, the wiring harness is sealed to the casing using a waterproof grommet and the solenoid wires are ultrasonically welded to the coil, making the device waterproof and safe to wash.

COBB Tuning has made the COBB 3-Port BCS installation as simple as possible. It mounts in the stock location and plugs directly into the stock wiring harness, making the physical install and electrical connection as straightforward possible. The BCS comes with a custom aluminum mounting bracket, stainless steel hardware, the necessary boost-line to complete all connections and zip-ties to route the boost-line neatly through the engine bay. The install instructions are easy to understand, with photographs and illustrations to guide you through the installation process, and include routing instructions for both internal and external wastegate configurations.

The COBB Tuning 3-Port BCS is the ulimate electronic boost control device for modern turbocharged applications, designed with outstanding boost control, engineered for consistent performance and extended service life, and configured for easy installation. Get your boost under control and Access the Potential of your turbocharged MAZDASPEED today!


  • Accurate and consistent boost control
  • Plug and play 18-gauge wiring harness
  • 1/8" nickel plated barbed fittings
  • 1/4" nickel plated barbed fittings available separately
  • Rated up to 120psi
  • Custom aluminum BCS mount
  • Stainless steel hardware
  • Boost-line and zip-ties included
  • Viton spools and seals
  • Dow Corning silicone lubrication
  • Waterproof seals allow washing


  • 07-13 Mazda Mazdaspeed3
  • 06-07 Mazda Mazdaspeed6
  • 07-11 Mazda Mazda3 MPS
  • 04-06 Mazda Mazda6 MPS
